Figma access

How the pieces connect

Claude Code spawns the MCP server, which opens a local WebSocket. The Figma Desktop plugin connects to that socket. The REST token is an optional side channel the MCP uses for metadata reads — it does not carry any of the live plugin traffic.

Step 1 — Install the Desktop Bridge plugin (required)

Takes ~90 seconds. One-time setup. The plugin is bundled with the MCP package — no separate download.

# safe to run any time — exits quickly
npx -y figma-console-mcp@latest --help

# confirm the manifest landed
ls ~/.figma-console-mcp/plugin/manifest.json

Step 2 — Add a REST access token (optional)

Only needed if you want Claude to read file/variable/comment metadata via Figma's REST API. All interactive work — screenshots, selection, edits — already flows through the plugin and does not require this token.

01

Open Figma settings

Go to Figma → Settings → Security, scroll to Personal access tokens.

02

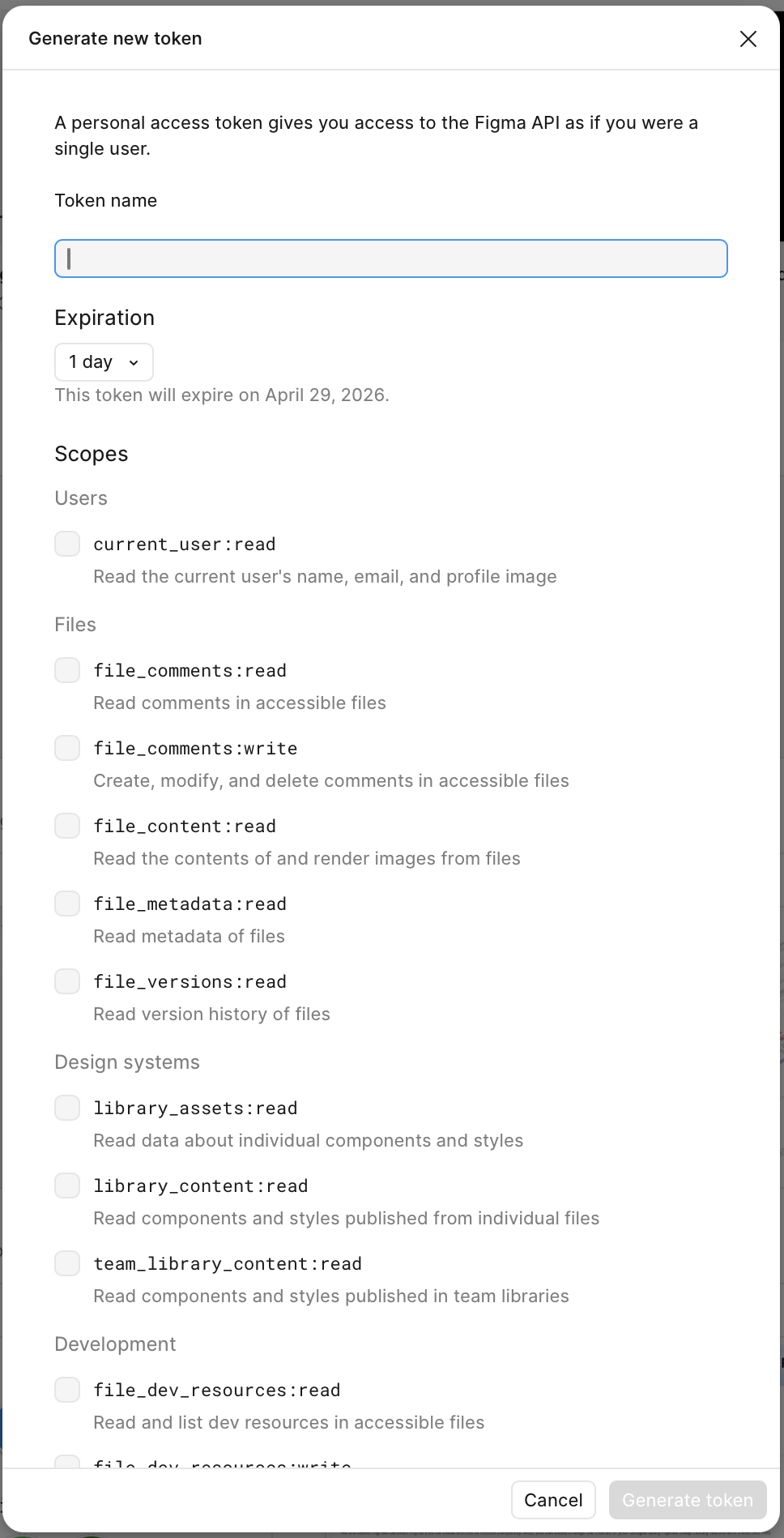

Generate the token

Name it atelier-ui-workshop. Pick an expiration (default is 1 day; bump it to 30 or 90 days if you plan to keep using the workshop). Under Scopes, enable Files → File content (Read) as the minimum. For the Token Browser and Design System Dashboard, also tick Design systems → Library content (Read) and Library assets (Read). Click Generate token and copy the value (figd_…) — it is shown only once.

Your token value copy once

figd_ AbCd1234-wXyZ5678-QrSt9012-mNoP3456

Every Figma token starts with figd_ followed by ~36 characters. Figma hides it after the dialog closes.

Step 3 — Wire the token into .mcp.json (only if Step 2)

The MCP process receives its environment from the env block of .mcp.json, not from your login shell. A bare export will not reach the child process unless .mcp.json references it explicitly. Two options:

Option A — Shell export + $${VAR} substitution (recommended)

Keeps the token out of version control. Claude Code expands $${FIGMA_ACCESS_TOKEN} from your shell at MCP startup (see the expansion docs).

// .mcp.json
"figma-console": {
  "command": "npx",
  "args": ["-y", "figma-console-mcp@latest"],
  "env": {
    "FIGMA_ACCESS_TOKEN": "${FIGMA_ACCESS_TOKEN}",
    "ENABLE_MCP_APPS": "true"
  }
}

# macOS / Linux (zsh / bash) — persist the token
echo 'export FIGMA_ACCESS_TOKEN=figd_your_token_here' >> ~/.zshrc
source ~/.zshrc

# Windows (PowerShell)
[Environment]::SetEnvironmentVariable("FIGMA_ACCESS_TOKEN","figd_your_token_here","User")

Option B — Inline value

Simpler, but the token lives in the file. Fine for a machine-local, git-ignored .mcp.json — never commit it.

"env": {
  "FIGMA_ACCESS_TOKEN": "figd_your_token_here",
  "ENABLE_MCP_APPS": "true"
}

Restart Claude Code after either change so it re-reads .mcp.json. ENABLE_MCP_APPS=true unlocks the Token Browser and Design System Dashboard UI (clients without ext-apps protocol support will ignore it).

Can't run Figma Desktop? Cloud mode

If you are on a locked-down machine, in a browser-only Codespace, or using Claude.ai on the web, point the MCP at the hosted relay at https://figma-console-mcp.southleft.com/mcp. You will be issued a 6-character pairing code (5-minute TTL) and get a reduced set of ~44 write tools. Selection tracking and console streaming are not available in cloud mode.

// .mcp.json — cloud variant
"figma-console": {
  "type": "http",
  "url": "https://figma-console-mcp.southleft.com/mcp"
}

Verify the setup

npm run preflight

Preflight checks the plugin manifest, the port range, and the token — in that order. The plugin manifest check is the important one: if it's missing, re-run Step 1. Token-related lines are warnings, not failures. See troubleshooting for the most common connection issues.

For a live smoke test, open Claude Code in this repo and ask:

Use the figma-console MCP to call figma_get_status and report what it returns.

A successful response means the WebSocket bridge is live. A "not connected" error means the plugin is either not imported, not running, or blocked by a port conflict.
